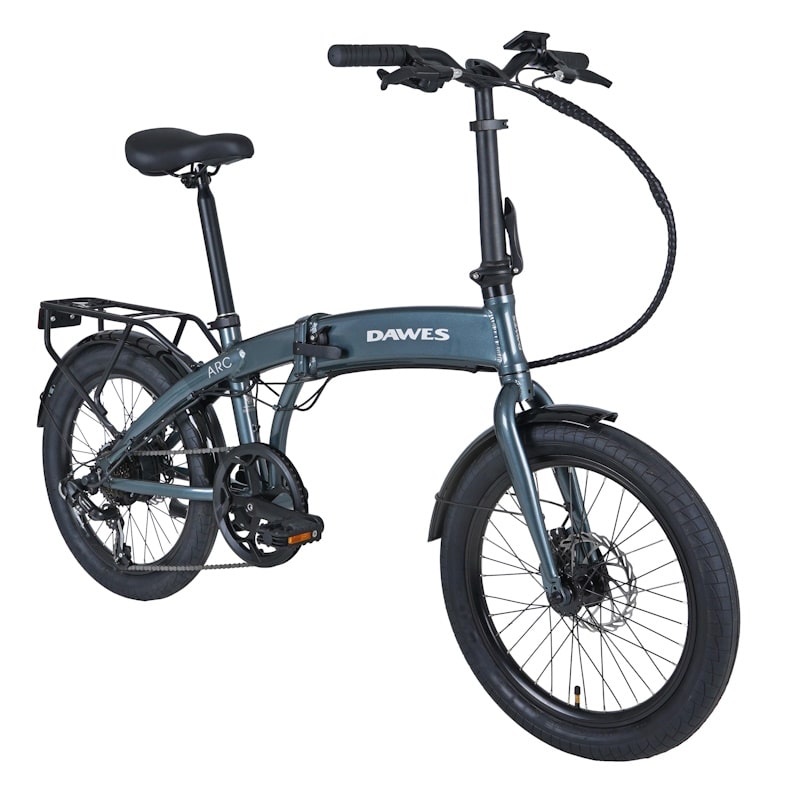

About the Dawes Arc E-Bike 2025 Model
The Dawes Arc foldable e-bike has had a complete makeover for 2025, combining a sleek new design with nearly double the battery range. But don’t worry - it still has the easy-fold features that have made it a hit with commuters and fans in the caravan, motorhome, and boating communities.
The 375Wh integrated battery gives you up to 40 miles (64km) of range and takes just 5 hours to recharge from empty. Paired with the trusted Bafang rear hub motor, which delivers 32Nm of torque, the Arc makes climbing steep hills a breeze and cruising on flat terrain effortless. Plus, it comes with a handy USB port so you can charge your phone or other gadgets when you’re parked up.
Switching between assist modes is simple with the backlit handlebar display, which also shows key stats like battery level, speed, and distance. Whether you’re commuting or exploring, you’re always in the know.
The bike is equipped with a Shimano Altus/Tourney 1x7 speed gearing system, featuring an upgraded trigger shifter for smooth and reliable gear changes. And when it’s time to stop, the mechanical disc brakes will give you confidence in any weather.
With 20” wheels, the Dawes Arc hits the sweet spot for comfort, stability, and speed. They’re larger than 16” wheels, making for a more comfortable ride, but still small enough to fold down compactly. The high-volume 20x2.40” tires even give you a suspension-like feel - without the extra weight.
Folding the Arc couldn’t be easier. In just three simple steps and under 15 seconds, it folds down small enough to stow away neatly. Foldable pedals, a collapsible stem, and a hinged frame make it super portable for storage or transport.
The lightweight alloy frame means it’s easy to lift onto public transport or into a car. Thanks to its adjustable stem and smart one-size-fits-all geometry, the Arc suits riders from 5’0” to 6’2” (152cm to 188cm).
To top it off, the Dawes Arc is kitted out with everything you need for year-round riding: a pannier rack, full-length mudguards, and a kickstand are all included as standard. Perfect for commuting or weekend adventures!
General Info
Bikes come boxed and only 85% built. However, we can offer a white glove service for a small additional charge where we will fully inspect the bike and dispatch in a box ready to ride (choose "White Glove Delivery" above to select this option).
Delivery to Mainland UK addresses only. Estimated delivery time 2-5 working days.
Specifications
- Estimated range: 40 miles / 64km
- Recharge time: 5 hours
- Maximum assisted speed: 15.5mph / 25kmh
- Motor type: Rear hub motor
- Motor torque: 32nm
- Battery type: Integrated
- Number of Gears: 7
- Rec. Rider Height: One size fits all - 5'0" to 6'2" (152cm to 188cm)
- Weight: 21.7kg
- Battery: Integrated 36V 10.5Ah, 378wh
- Charger: 36V 2.0A, UK plug
- Motor: Bafang rear hub motor, 32nm
- Display: Key Display KD-21C mode selection, battery indicator, current speed, distance and trip distance
- Sensor: Cadence sensor
- Frame: Dawes 6061 alloy folding frame with integrated battery
- Frame Sizes: One size
- Fork: Dawes, Steel
- Handlebars: Alloy riser bars, 600mm wide
- Stem: Alloy folding with adjustable height, Black
- Grips: Comfort style
- Crank Set: Alloy, 52T with double chain guard
- Bottom Bracket: Cartridge BB
- Cassette: Shimano MF-TZ500, 14-34T, 7 speed
- Rear Derailleur: Shimano Tourney RD-TY500, 7 speed
- Gear Shifters: Shimano Altus SL-M315 trigger shifter, 7 speed
- Chain: KMC Z7, 7 speed
- Pedals: 9/16" folding
- Brakes: Mechanical disc brakes, 160mm rotors
- Brake Levers: Alloy, Black
- Front Hub: Alloy, Quick release, Black
- Rear Hub: Bafang rear hub motor, 32nm
- Rims: 20" alloy, Black
- Spokes: 13G, Black
- Tyres: Wanda P1472, 20x2.40"
- Saddle: Padded comfort saddle, Black
- Seat Post: Alloy 500mm, Black
- Seat Post Clamp: Quick release, Black
- Rack: Steel pannier rack, Black
- Mudguard: Full length mudguards, Black
- Bell: Included
- Kickstand: Adjustable kickstand
